Wire UL3271 Electrical Cables for House Wiring VW-1 AWG 8 10 12 14 Lectrique Fil De Courant Electric Wire Cable
Our UL3271 electrical cables offer superior performance and safety for residential wiring applications. These VW-1 rated cables are available in popular AWG sizes 8, 10, 12, and 14 to meet various current capacity needs.
- Overview
- Recommended Products
Our Products
Certifications
Company Profile
Products Description
★【Why Use XLPE Hook-up Wire?】 XLPE insulated hook-up wire has superior properties to polyvinyl chloride (PVC) and standard polyethylene insulation. The most obvious one is that XLPE does not soften or degrade except at high temperatures. You can use XLPE insulated wire at temperatures up to 105 degrees Celsius, and some types will go even higher. The material has superior fire-retardant properties.
From an electric point of view, XLPE exhibits lower dielectric losses, and it's commonly used for high-voltage cables. The material has good water and excellent chemical and oil resistance and exhibits good aging characteristics compared to PVC, except in direct sunlight. This is because XLPE's ultraviolet properties aren't as good as PVC. XLPE wires used outdoors should have a UV-resistant jacket. However, XLPE wire has excellent abrasion, crush and deformation resistance and is suitable for direct burial in the ground. ★【When should XLPE cable be used?】 XLPE cable is commonly used in a wide range of applications, including power distribution in buildings, industrial installations, and utility power grids. It is available in various sizes and configurations, including single-core, multi-core, and screened cables. It can also be used for low-voltage, medium-voltage, and high-voltage Cross-Linked Polyethylene applications.
★【In short, XLPE cable should be used in industries that expose wire and cable to:】 Extreme temperature conditions (high and low) High-voltage electrical applications Abrasion and stress Water and other liquids Chemicals and other hazardous materials XLPE cable can be used for plumbing, mining, and various electrical applications. Cross-linked polyethylene cables can also be found across the chemical industry and within the commercial and residential heating industry. Don’t forget about dentists’ offices and other medical institutions, groundskeeping at stadiums and other venues, and much more.

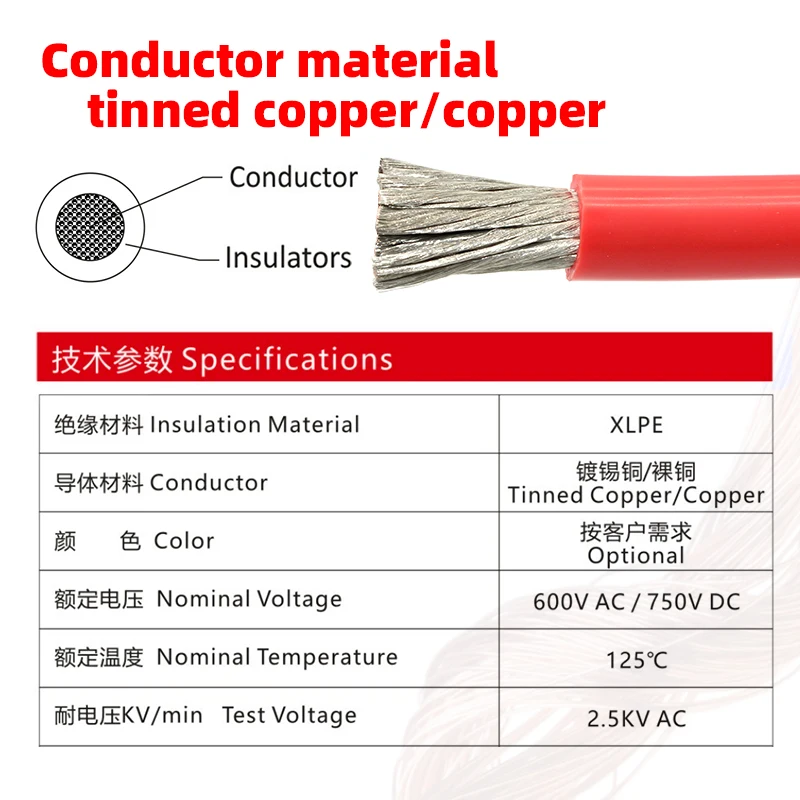

Specification
product name |
UL3386 |
||||
voltage |
600V AC |
||||
shape |
round |
||||
insulation material |
xlpe |
||||
conductor |
tinned copper/ copper |
||||
nominal temperture |
-60℃~+105℃ |
||||
flame test |
VW-1 |
||||
features |
The material has good water and excellent chemical and oil resistance and exhibits good aging characteristics compared to PVC,except in direct sunlight. |
||||
xlpe Insulators |
XLPE insulated hook-up wire has superior properties to polyvinyl chloride (PVC) and standard polyethylene insulation. The most obvious one is that XLPE does not soften or degrade except at high temperatures. You can use XLPE insulated wire at temperatures up to 150 degrees Celsius, and some types will go even higher. The material has superior fire-retardant properties. |
||||
AWG |
4/0awg；3/0；2/0awg；1awg；2awg；4awg；6awg；8awg；10awg；12awg；14awg；16awg；18awg；20awg；22awg；24awg；26awg；28awg；30awg |
||||
versatility for Multiple Applications |
High-voltage electrical applications Abrasion and stress Water and other liquids Chemicals and other hazardous materials |
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or trading company?A: We are a factory with 20 years of experience and more than 20 engineers. We can manage your order from start to finish. You are welcome to visit us in Dongguan.Q: Where is your factory located? How can I visit there?A: Our factory is located in Dongguan City, Guangdong Province, China. You can fly directly to Guangzhou or Shenzhen airport. We warmly welcome all our clients, both domestic and international, to visit us! Q: Why choose us over other suppliers?A: 1、We have over 20 years of experience in the wire industry and our own factory equipped with advanced Italian production lines, ensuring high-quality products and the ability to resolve any issues independently, guaranteeing customer satisfaction.
2、All our products adopts platinum technology, which is halogen-free, odorless, and meets food-grade standards. 3、Our products have passed the VW-1 flame test. 4、All products comply with UL standards. 5、Our products are reliable and come with comprehensive certification reports, including ISO9001:2015, ISO14001:2015, IATF16949, UL (wires/cables), CCC, CE, CQC, SGS, RoHS, REACH, and CA65. Q: Do you offer OEM & ODM services? A: Yes, we have a professional team of engineers dedicated to providing OEM & ODM services. Q: What’s your Minimum Order Quantity? A: Our standard minimum order quantity is 100 meters. However, due to the weight of the cable, we recommend ordering an appropriate quantity to avoid high shipping costs. Sea transportation is the most cost-effective option. Q: How can I get a sample to test your quality? A: Sample is free, but the freight charge should be paid. Q: When can I get the price? A: We usually provide a quote within 6 hours after receiving your inquiry. If you need the price urgently, please call us or mention the urgency in your email, and we will prioritize your request. Q: How about your after-sale service? A: 1、We guarantee that the quality of our products will match the buyer's samples. If there are any quality issues, we will provide compensation to our customers. 2、We ensure the goods are delivered safely.
