UL2517 Multi Core Shielded Cable 24AWG Flexible Tinned Copper Wire PVC Jacket for Signal Transmission

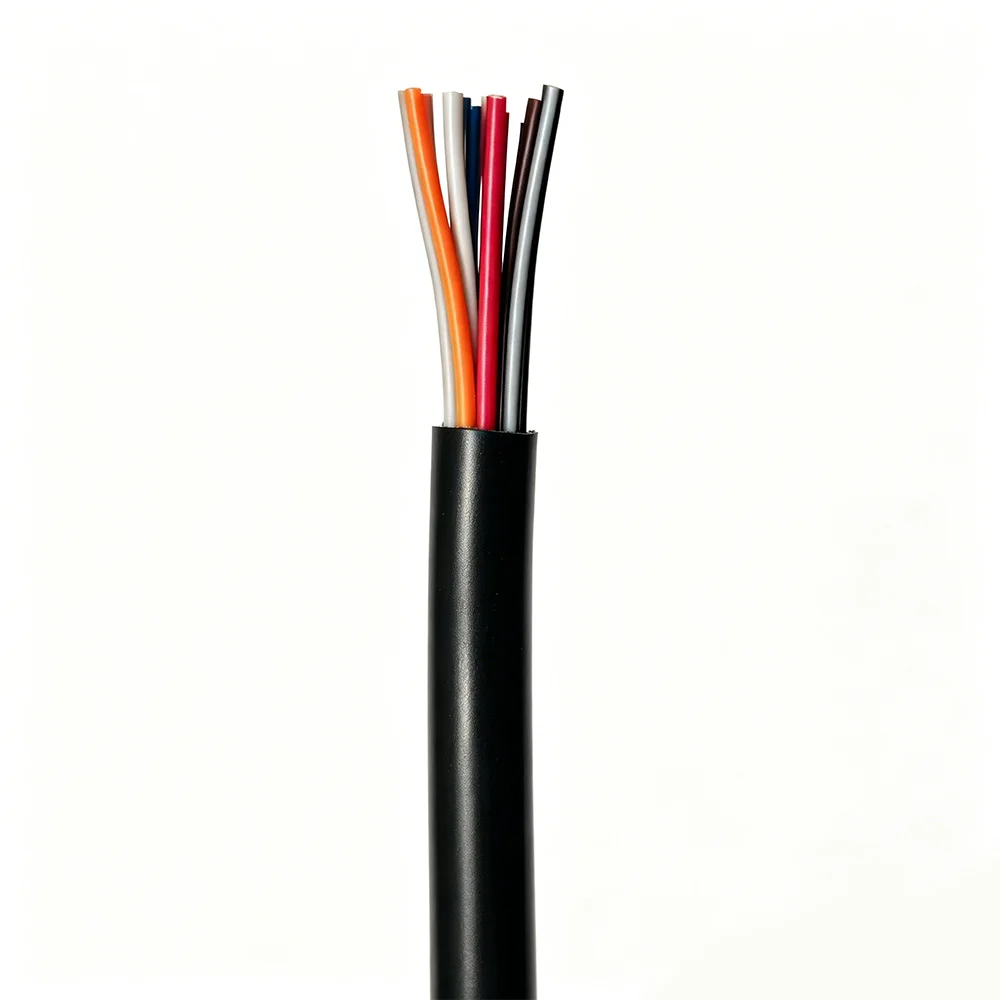

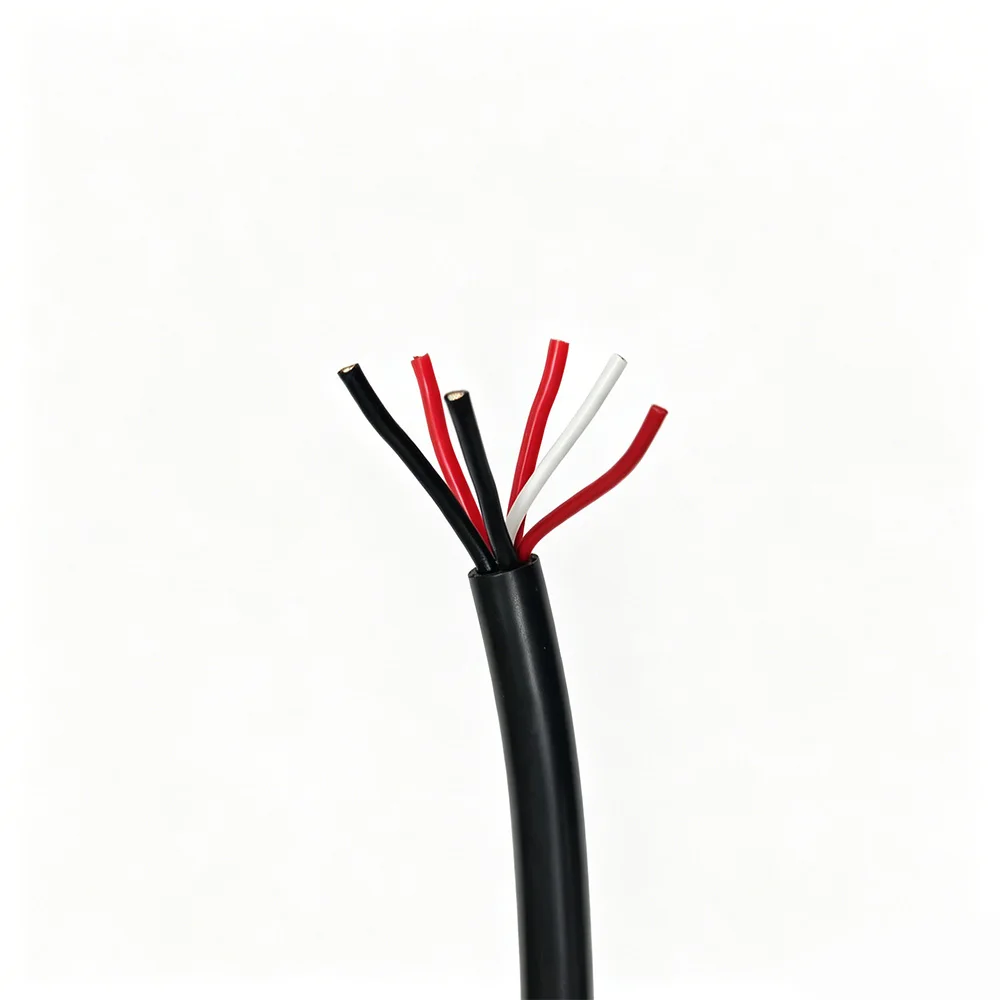

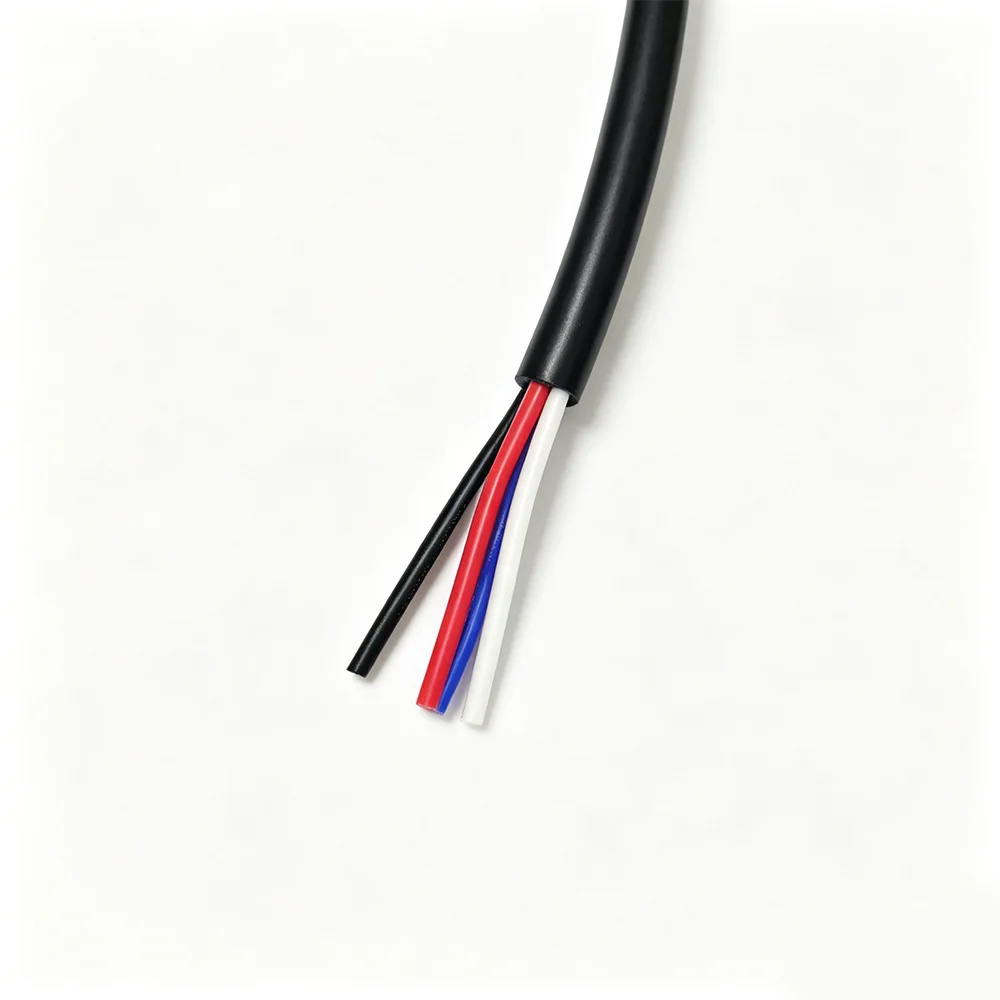

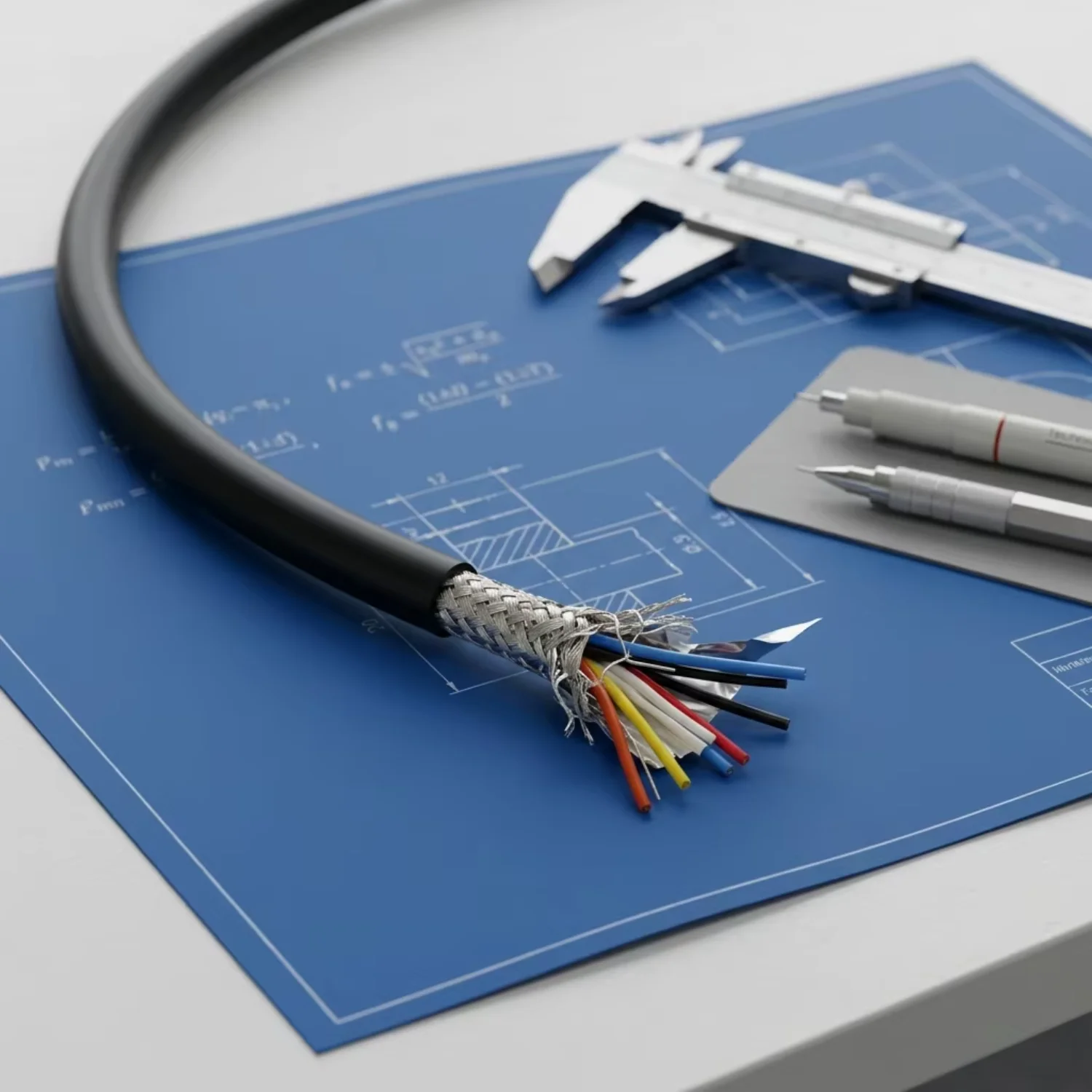

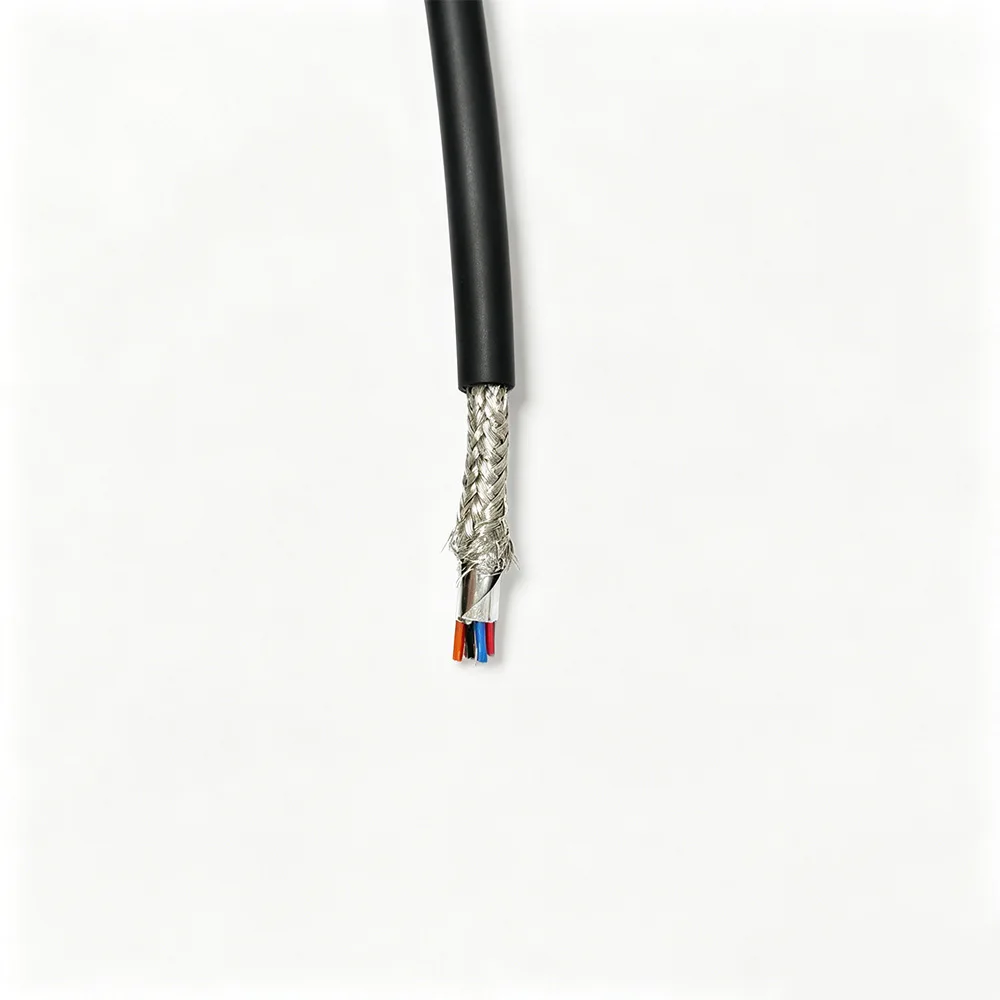

UL2517 shielded cable with flexible tinned copper conductor and PVC jacket, available in multi core configurations. Designed for signal transmission, electronic equipment, and industrial control applications.
Spu:
11000036037866
- Overview
- Recommended Products
- Tin Plated Copper Conductor: Ensures durability and conductivity for long-term reliability.
- PVC Insulation: Offers superior protection against moisture and environmental damage.
- Customizable Lengths: Tailored to fit specific needs and applications.
- 300V Rated Voltage: Meets high-voltage standards for safety and performance.
- China Origin: Manufactured with high-quality components for reliability.
PRODUCT HIGHLIGHTS
SPEC No. |
Conductors |
Insulators |
Outside Layer |
Outside-Shield |
Outside Jacket |
||||||
Construction AWG
|
Diam of strands
(mm)
|
Diameter
(mm)
|
Pitch
(mm)
|
Shield |
Construction AWG |
Coverage |
Diameter (mm)
|
||||
28AWG* 2P |
7/0.127TS |
0.38 |
0.8 |
50-55 |
Shield |
16*6/0.10TS |
≥70% |
5.7 |
|||
28AWG*2C |
7/0.127TS |
0.38 |
0.9 |
35-40 |
3.3 |
||||||
26AWG*1P+3C |
30/0.08TS |
0.50 |
2.0 |
7.5 |
|||||||
24AWG*8C |
40/0.08TS |
0.76 |
2.15 |
8.8 |
|||||||
24AWG*6C |
40/0.08TS |
0.76 |
2.15 |
8.2 |
|||||||
24AWG*5C |
40/0.08TS |
0.76 |
2.15 |
7.5 |
|||||||
24AWG*4C |
40/0.08TS |
0.76 |
2.15 |
6.8 |
|||||||
24AWG*3P+2C |
30/0.08TS |
0.50 |
2.0 |
Shield |
16*8/0.12TS |
≥80% |
9.5 |
||||
24AWG*3C |
40/0.08TS |
0.76 |
2.15 |
6.3 |
|||||||
24AWG*2P |
40/0.08TS |
0.76 |
2.15 |
Shield |
16*8/0.08TS |
≥50% |
7.8 |
||||
24AWG*2P |
40/0.08TS |
0.76 |
2.15 |
7.8 |
|||||||
22AWG*2C |
19/0.15TS |
0.75 |
2.0 |
Shield |
16*7*0.12TS |
≥85% |
6.5 |
||||
20AWG*2C |
21/0.18TS |
0.95 |
1.6 |
Shield |
16*7*0.10TS |
≥80% |
5.0 |
||||
18AWG*3C |
168/0.08TS |
1.20 |
2.75 |
7.7 |
|||||||
FAQs
Are you a manufacturer or trading company?
We are a factory with 20 years of experience and more than 20 engineers. We can manage your order from start to finish. You are welcome to visit us in Dongguan.
Where is your factory located? How can I visit there?
Our factory is located in Dongguan City, Guangdong Province, China. You can fly directly to Guangzhou or Shenzhen airport. We warmly welcome all our clients, both domestic and international, to visit us!
Why choose us over other suppliers?
We have over 20 years of experience in the wire industry with our own factory and advanced Italian production lines, ensuring stable quality and professional after-sales support. Our products use platinum technology, which is halogen-free, odorless and food-grade compliant. They pass VW-1 flame test and meet UL standards. We hold full certifications including ISO9001, ISO14001, IATF16949, UL, CCC, CE, CQC, SGS, RoHS, REACH and CA65, making our cables safe, reliable and fully qualified worldwide.
Do you offer OEM & ODM services?
Yes, we have a professional team of engineers dedicated to providing OEM & ODM services.
What is your Minimum Order Quantity?
Our standard minimum order quantity is 500 meters. However, due to the weight of the cable, we recommend ordering an appropriate quantity to avoid high shipping costs. Sea transportation is the most cost-effective option.
How can I get a sample to test your quality?
Sample is free, but the freight charge should be paid.
When can I get the price?
We usually provide a quote within 6 hours after receiving your inquiry. If you need the price urgently, please call us or mention the urgency in your email, and we will prioritize your request.
How about your after-sale service?
We guarantee that our product quality will match the buyer's samples, and we will provide compensation for any quality issues while ensuring safe delivery of the goods.
