Custom UL11627 10 12 14AWG PVC Insulation Ethiopia Single Roll Bare Duplex Reel Wire Cable
High-quality UL11627 certified electrical wire designed for reliable power transmission and wiring applications. Available in 10, 12, and 14 AWG sizes, this versatile cable features durable PVC insulation that offers excellent protection against moisture, heat, and abrasion. The single roll bare duplex construction ensures easy installation and consistent performance in both residential and commercial settings.
- Overview
- Recommended Products
Our Products
Certifications
Company Profile
Products Description
★【Why Use PVC Hook-up Wire?】PVC cable performs well in temperature adaptability. It is reliable in medium and low temperature environments and can generally be used safely in a temperature range of up to 70 to 90 degrees Celsius. Secondly, PVC material has good flame retardant properties. Therefore, PVC cable is widely used in environments with high safety requirements, such as electrical wiring in buildings. From the perspective of electrical performance, PVC insulation material has a high dielectric constant and is suitable for low-voltage and medium-voltage cable applications. In most conventional applications, PVC cable can provide reliable electrical performance. In addition, PVC material also performs well in chemical resistance. It has strong tolerance to a variety of chemicals, especially when facing acids, alkalis and salts, which makes PVC cable stable for a long time in chemical environments and not susceptible to corrosion.
★【When should PVC cable be used?】PVC cables are commonly used for low-voltage power transmission and are suitable for household appliances, electrical equipment, and power wiring inside buildings. Their rated voltage is usually 450/750V and below.
★【In short,PVC cable should be used in industries that expose wire and cable to:】
Low temperature environments Low voltage power transmission Dry or slightly humid environments Low mechanical stress environments Moderately corrosive environments In summary, PVC cables are suitable for industries and applications with relatively mild environmental conditions and low requirements for cable heat resistance and chemical resistance, especially indoor or short-term outdoor applications.

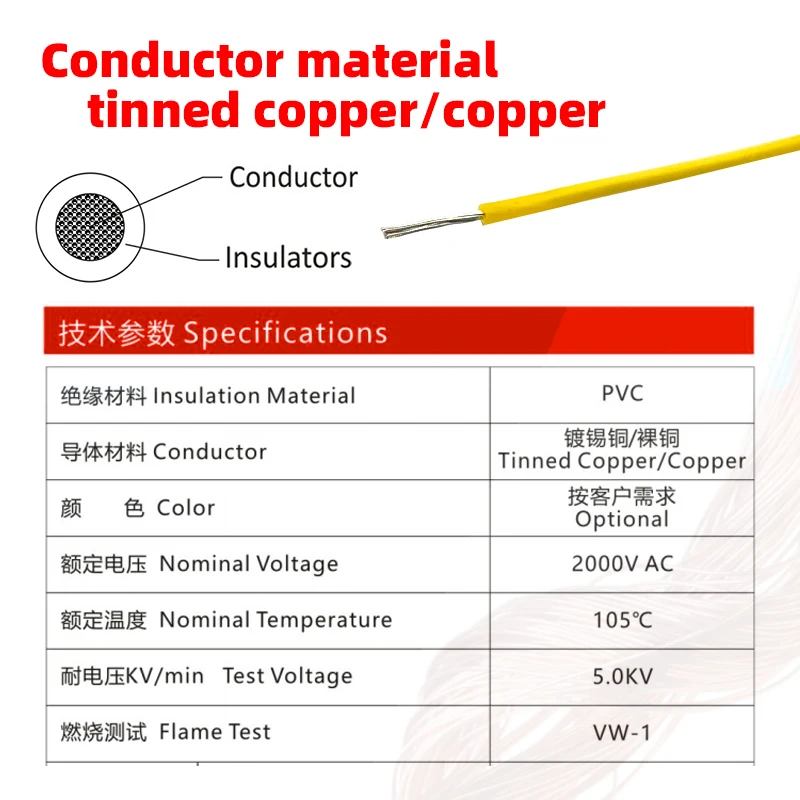

Specification
product name |
UL11627 |
||||
voltage |
2000V AC |
||||
shape |
round |
||||
insulation material |
PVC |
||||
conductor |
tinned copper/ copper |
||||
nominal temperture |
-60℃~+105℃ |
||||
flame test |
VW-1 |
||||
characteristic |
Chemical resistance: PVC cables have good resistance to chemicals such as acids, alkalis, and oils, making them suitable for harsh environmental conditions. PVC cables can maintain their performance in humid environments and are not easily damaged by moisture. |
||||

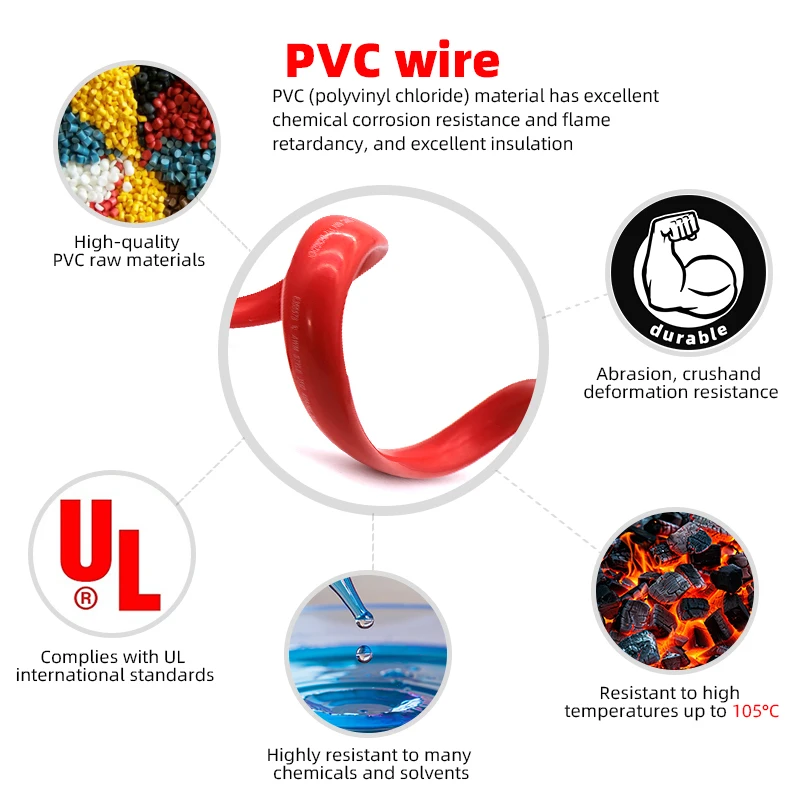

PVC Insulators |
PVC (polyvinyl chloride) can maintain its stability in both acidic and alkaline environments and will not be easily corroded by chemicals. Secondly, PVC materials also have good aging resistance. After proper stabilizer treatment, PVC products can be exposed to outdoor environments for a long time without aging. Unlike other plastics, PVC will not burn quickly when encountering a fire source, but will self-extinguish, which makes its application in building materials and electronic products safer and reduces the risk of fire. |
||||
AWG |
4/0awg；3/0awg；2/0awg；1/0awg；1awg；2awg；4awg；6awg；8awg；10awg；12awg；14awg；16awg；18awg；20awg；22awg；24awg；26awg；28awg；30awg |
||||
versatility for Multiple Applications |
Low temperature environments Low voltage power transmission
Dry or slightly humid environments
Low mechanical stress environments
Moderately corrosive environments |
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer or trading company?A: We are a factory with 20 years of experience and more than 20 engineers. We can manage your order from start to finish. You are welcome to visit us in Dongguan.Q: Where is your factory located? How can I visit there?A: Our factory is located in Dongguan City, Guangdong Province, China. You can fly directly to Guangzhou or Shenzhen airport. We warmly welcome all our clients, both domestic and international, to visit us! Q: Why choose us over other suppliers?A: 1、We have over 20 years of experience in the wire industry and our own factory equipped with advanced Italian production lines, ensuring high-quality products and the ability to resolve any issues independently, guaranteeing customer satisfaction.
2、All our products adopts platinum technology, which is halogen-free, odorless, and meets food-grade standards. 3、Our products have passed the VW-1 flame test. 4、All products comply with UL standards. 5、Our products are reliable and come with comprehensive certification reports, including ISO9001:2015, ISO14001:2015, IATF16949, UL (wires/cables), CCC, CE, CQC, SGS, RoHS, REACH, and CA65. Q: Do you offer OEM & ODM services? A: Yes, we have a professional team of engineers dedicated to providing OEM & ODM services. Q: What’s your Minimum Order Quantity? A: Our standard minimum order quantity is 100 meters. However, due to the weight of the cable, we recommend ordering an appropriate quantity to avoid high shipping costs. Sea transportation is the most cost-effective option. Q: How can I get a sample to test your quality? A: Sample is free, but the freight charge should be paid. Q: When can I get the price? A: We usually provide a quote within 6 hours after receiving your inquiry. If you need the price urgently, please call us or mention the urgency in your email, and we will prioritize your request. Q: How about your after-sale service? A: 1、We guarantee that the quality of our products will match the buyer's samples. If there are any quality issues, we will provide compensation to our customers. 2、We ensure the goods are delivered safely.
