Choosing the right electrical wire is essential for reliable performance in electrical equipment and industrial applications. Insulation material, conductor type, rated voltage, operating temperature, and flame-test requirements all play important roles in wire selection.
UL11627 wire is a PVC-insulated wire specification with a rated voltage of 2000V AC and a rated temperature of 105°C, according to the product specification provided by the manufacturer. Available conductor options include tinned copper and bare copper, while insulation colors can be customized according to project requirements.
In this guide, we explain the key specifications of UL11627 wire and the factors buyers should consider when sourcing it for their applications.
UL11627 is a wire style designation associated with a particular construction and set of electrical and material requirements. When selecting this wire, buyers should verify the applicable UL certification record and ensure that the offered product matches the required construction and ratings.
The product described in this specification uses PVC insulation and can be manufactured with either tinned copper or bare copper conductors.
Its listed electrical and temperature ratings make it a potential option for applications that require a combination of electrical insulation, elevated-temperature performance, and specified voltage capability, subject to the requirements of the end product.

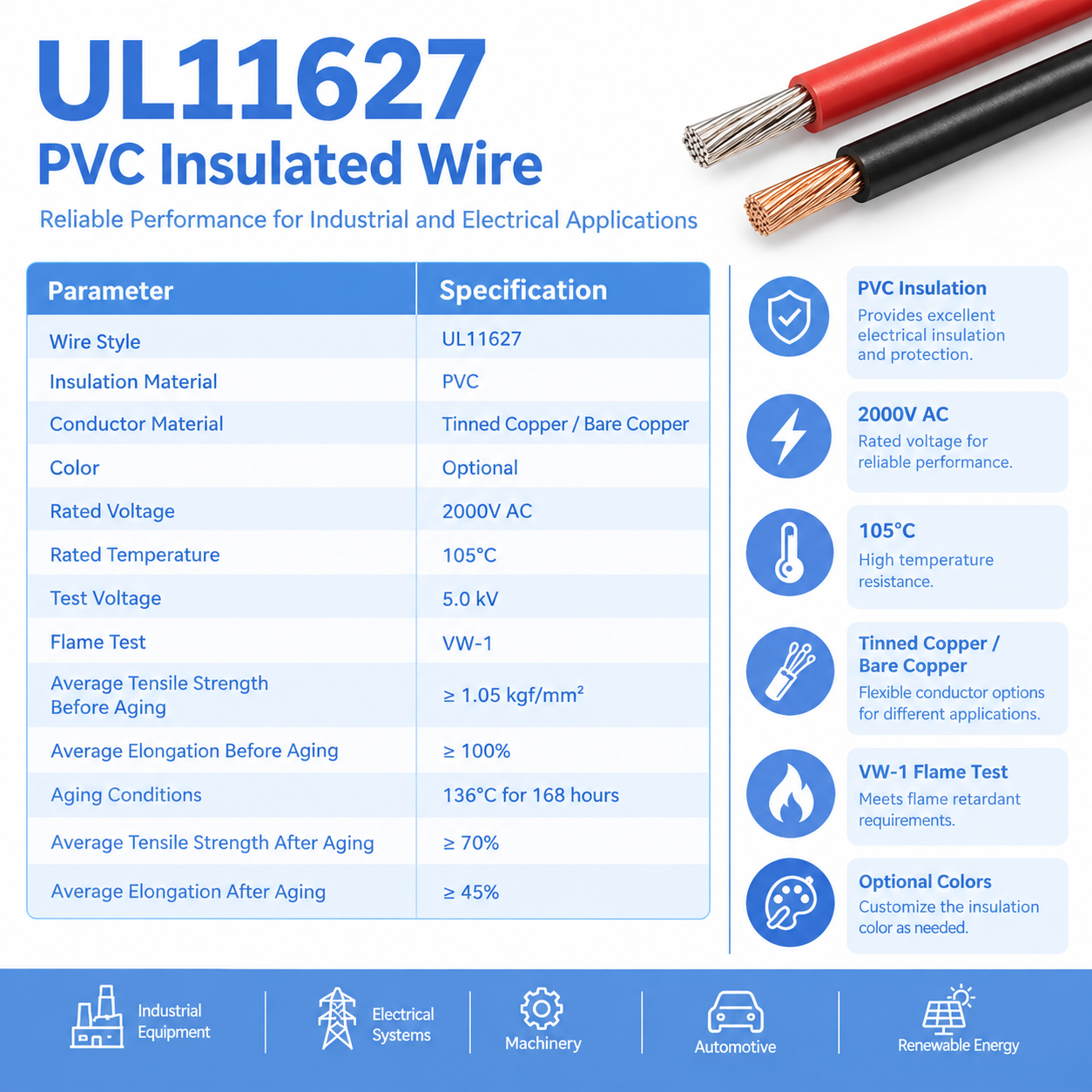

The following table summarizes the main technical parameters shown in the manufacturer's product specification.
PVC insulation provides electrical insulation and protection around the conductor. Its suitability depends on the application environment, temperature requirements, mechanical conditions, and applicable safety standards.
The specified rated voltage is 2000V AC. Buyers should distinguish the rated operating voltage from the test voltage and confirm that the wire is suitable for the intended electrical system.
The wire is specified for a rated temperature of 105°C. This rating is an important selection factor for equipment operating in elevated-temperature environments, but it does not mean that every installation condition is suitable for continuous operation at that temperature.
UL11627 wire can be specified with tinned copper or bare copper conductors.
Tinned copper features a tin coating over the copper surface, while bare copper has no tin coating. The appropriate choice depends on the electrical design, environmental conditions, termination method, and project requirements.
Different insulation colors can help identify conductors during assembly and maintenance. Buyers should specify their required colors and quantities when requesting a quotation.
Both conductor options use copper, but their surface finishes differ.
Tinned copper wire has a tin coating that can help protect the copper surface against oxidation under suitable conditions. It is often considered when surface condition and termination requirements are important.
Bare copper wire has an uncoated copper surface and may be suitable for applications where the specified electrical and environmental requirements allow it.
The final choice should be based on the required conductor construction, operating environment, electrical performance, and applicable product standards rather than conductor material alone.
Before requesting a quotation, purchasing teams and engineers should confirm the following details:
Providing these details helps the manufacturer evaluate the required construction and prepare a more accurate quotation.
When sourcing UL11627 wire, buyers should evaluate more than the product name. The offered wire should match the required conductor, insulation, voltage rating, temperature rating, dimensions, and certification requirements.
Requesting a current specification sheet and applicable certification information can help the purchasing and engineering teams review product suitability before placing an order.
At Dongguan Zhongzhen New Energy Technology Co., Ltd., we supply wire and cable products for industrial and electrical applications. If you are sourcing UL11627 wire, share your required wire size, conductor material, insulation color, and order quantity so our team can check the corresponding product details.
Looking for UL11627 PVC-insulated wire rated at 2000V AC and 105°C?
Contact our team with your project specifications. We can review your requirements, confirm the available construction, and provide a quotation based on the requested size, conductor material, color, and quantity.
